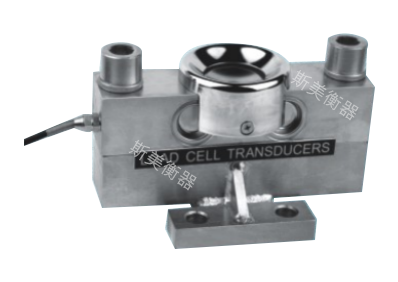

Bridge load cell:

QS bridge load cell adopts a unique bridge structure with two ends supported and the middle stressed. The elastomer is made of high-quality alloy structural steel and the surface is painted. The transmission component adopts the structure of pressure head and steel ball. This type of sensor is certified by ntep. Protection grade: IP68, explosion-proof sign: Exia Ⅱ CT6.

Product application

It can be used to manufacture all kinds of electronic truck scales, track scales, hopper scales and special scales.

Advantage characteristics

The force transmission component adopts the structure of pressure head and steel ball, which can automatically reset and adjust the center

Good lateral force and impact resistance.

Convenient installation and good interchangeability.

After good moisture-proof sealing, it can adapt to the bad working environment.

It is suitable for explosion hazardous areas.
