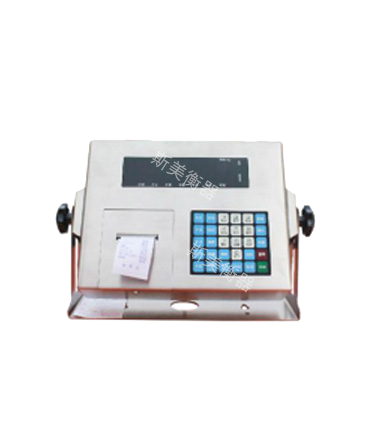

Digital weighing instrument:

    Function: stainless steel shell, including printing, built-in adjustment program, can be adjusted for each sensor, simpler, more efficient and more accurate than the traditional debugging method. Can be connected with the computer to achieve query, report and other functions.

XK3190-A12+

Project details

Xk3190-a12 + adopts high-precision analog-to-digital conversion technology and special software anti vibration technology, AC and DC dual-purpose. It is suitable for static weighing system with 1-4 sensors such as electronic platform scale and electronic platform scale.

basic function

High precision A / D conversion, readability up to 1 / 30000;

It is convenient to use the internal weight for display, instead of the observation and analysis tolerance of the sensitive weight;

Special software technology to enhance the anti vibration ability of the system;

Zero tracking range, zero setting (power on / manual) range and can be set separately;

The speed, amplitude and stable time of digital filtering can be set;

With weighing and counting function; (single weight has power-off protection)

Various backlight modes can be selected;

It can be charged randomly; it has undervoltage indication and protection device;

Equipped with 6V / 4ah maintenance free battery

Matching

technical parameter

A / D conversion mode: sigma delta conversion mode

A / D conversion rate: 20 times / S

Maximum a / D conversion: 20bit

Input signal range: - 10mV ～ 15MV

Input sensitivity: ≥ 1 μ V / E

Sensor power supply c5v;

XK3190-A12+E

Project details

Xk3190-a12 + series adopts high-precision analog-to-digital conversion technology and special software anti vibration technology, AC and DC dual-purpose. It is suitable for static weighing system with 1-4 sensors such as electronic platform scale and electronic platform scale.

basic function

High precision A / D conversion, readability up to 1 / 30000;

It is convenient to use the internal weight for display, instead of the observation and analysis tolerance of the sensitive weight;

Special software technology to enhance the anti vibration ability of the system;

Zero tracking range, zero setting (power on / manual) range and can be set separately;

The speed, amplitude and stable time of digital filtering can be set;

With weighing and counting function; (single weight has power-off protection)

Various backlight modes can be selected;

It can be charged randomly; it has undervoltage indication and protection device;

Equipped with 6V / 4ah maintenance free battery

Matching

technical parameter

A / D conversion mode: sigma delta conversion mode

A / D conversion rate: 20 times / S

Maximum a / D conversion: 20bit

Input signal range: - 10mV ～ 15MV

Input sensitivity: ≥ 1 μ V / E

Sensor power supply c5v;

XK3190-A12EKD

Project details

A12e-kd is a fast response Bluetooth instrument built on the basis of A12 + e. it has stable performance, fast weighing response and is widely used in the logistics industry

basic function

◆stable performance, not only inheriting the stable performance of A12 + e, but also faster response and higher communication rate

◆ built in high-performance Bluetooth module, which is called fast transmission, realizes the consistency of instrument and PDA display, so that you no longer "wait"

Double serial port to realize simultaneous use of Bluetooth and RS232

◆fast and stable weighing, suitable for all kinds of fast weighing occasions

◆built in Bluetooth module in the instrument, real-time Bluetooth communication, fast

Stable connection of PDA and computer, real-time transmission of weighing data

◆compatible with the systems of major express logistics companies

technical parameter

◆ accuracy level: III

◆ calibration index: nind = 3000

◆ minimum signal voltage of each calibration value E: 1 μ V

◆ input signal range: - 15MV ~ + 15MV

◆ load cell arch bridge power supply: 5VDC

◆ number of sensor connections: 1-4 350 Ω sensors

◆ working power supply: AC220V / 50Hz DC6V

Communication interface: RS-232 Bluetooth (optional)

XK3190-DS8

Project details

Product introduction:

Xk3190-ds8 display is suitable for the static weighing system with 1-16 digital sensors, such as electronic ground scale, electronic truck scale, static track scale, etc.

Product features:

◆ equipped with multiple anti cheating functions

◆ equipped with electronic lead sealing function

◆ new electronic seal encryption method

◆ it has a variety of diagnostic methods and is easy to debug

Optional Ethernet, 4-20mA, switching value and other expansion interfaces

◆ meter LED digital tube display, can store and print complete Chinese license plate number

◆ it has a variety of diagnostic methods and is easy to debug

Optional Ethernet, 4-20mA, switching value and other expansion interfaces

◆ meter LED digital tube display, can store and print complete Chinese license plate number

Basic functions:

◆ it can connect multiple Yaohua protocol digital sensors

◆ automatic / semi-automatic / manual angle difference correction

◆ communication address modification function of digital sensor

◆ single sensor data viewing function

◆ automatic switching of second gear index value;

◆ nonlinear correction function and calibration error correction function

◆ timed shutdown function

◆ it is equipped with two independent full duplex UARTS, which are used to connect computers, PLCs and other equipment. Multiple communication modes are optional.

◆ equipped with large screen communication port of current ring; equipped with standard parallel printing interface

◆ weighing record storage / inspection / deletion / power-off protection

◆ it can store 1024 sets of vehicle brand and tare weight, 256 sets of product number, and 4096 sets of weighing records

◆ it can backup and restore various parameters in the instrument, reliable and practical

Technical parameters:

Digital sensor connection

◆connection mode: RS485 mode, four six wire compatible

◆Communication distance: About 1000M

◆number of connections: 1-16

◆sensor communication protocol: Shanghai Yaohua

◆sensor power supply: DC 10V, 0.8A (max)

display

◆display mode: 7-digit ultra bright meter LED digital tube, 10 status indicators, 5-level brightness adjustable

◆clock: real-time clock, automatic leap year, leap month, not subject to the sound of broken movies

Large screen interface

◆signal: 20mA current loop, serial output, transmission distance: ≤ 2000m

Printing interface

◆connectable wide line printers: lq-300k, kx-p1131, kx-p1121, ds-300

Thermal sensitivity micro printing: POS58, t58d optional panel micro printing

Serial communication interface

◆standard configuration: 1. RS232 / RS485 adaptive; 2. RS232

◆power supply: ac187-242v; 49-51hz

◆DC power supply: external 12V battery power supply
