1.Digital junction box:

The junction box is produced by advanced technology, with attention to details in design and strict implementation of design standards in processing. The product quality is highly consistent. It has the characteristics of moisture-proof, anti-corrosion, strong anti electromagnetic ability, high adjustment accuracy, and is suitable for all kinds of harsh environments. Its main advantages include:

The product uses its own mold for process design, the shell is made of aluminum silicon alloy, and the upper concave and lower convex groove matching structure is adopted, so as to ensure that the product has good sealing performance and the protection ability reaches IP68 level;

The main parts are imported products;

The assembly of the junction box shall not take off the screw to avoid the loss during the sensor wiring;

The terminal block is assembled with combination screws for easy disassembly;

2.Plastic junction box

Resistance strain gauge sensor, the impedance of the sensor is 350-800 Ω, and the excitation voltage is 5-15vdc (Umax = 18V)

Basic function

The parallel type and series type are optional, and the parallel type is jxh XB,

Series type is jxh XC (x is the number of sensors that can be connected)

Four wire, six wire and eight wire

High precision potentiometer

The connection mode is crimping and welding (parallel type)

Equipped with TVs tube (18V) against surge impact (parallel type)

10 wire junction box can be customized

Technical parameter

Adjustment range

Take 350 Ω sensor as an example: 5% in series

3% in parallel

Take 700 Ω sensor as an example: the series type is about 3%

About 2% in parallel

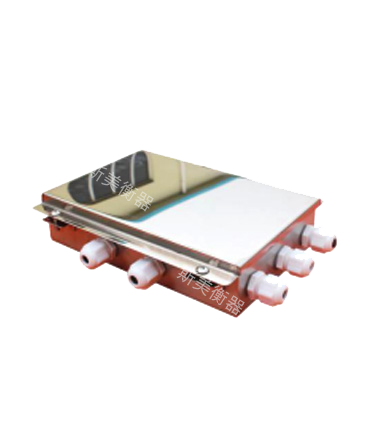

3.Stainless steel junction box

Resistance strain gauge sensor, the impedance of the sensor is 350-800 Ω, and the excitation voltage is 5-15vdc (Umax = 18V)

Basic functions:

The parallel type and series type are optional, and the parallel type is jxh XB,

Series type is jxh XC (x is the number of sensors that can be connected)

Four wire, six wire and eight wire

High precision potentiometer

The connection mode is crimping and welding (parallel type)

Equipped with TVs tube (18V) against surge impact (parallel type)

10 wire junction box can be customized

Technical parameter

Adjustment range

Take 350 Ω sensor as an example: 5% in series

3% in parallel

Take 700 Ω sensor as an example: the series type is about 3%

About 2% in parallel
