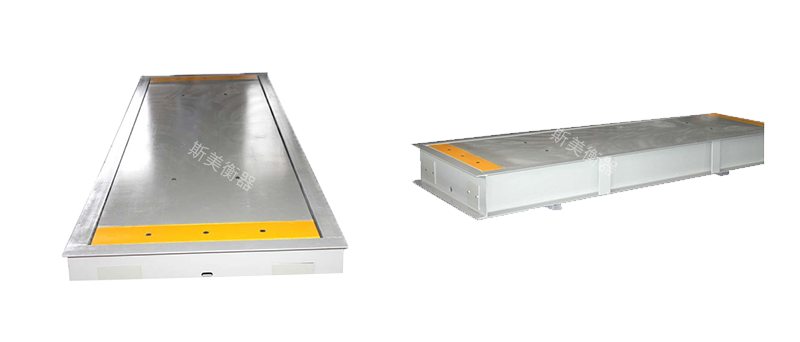

Axle weight scale

The feature of the axle weight scale:

       The Axle weight scale has the characteristics of small size , duel-use dynamic and static ,multiple vehicle closing methods , display large screen , Chinese menu prompt ,multiple print formats supported and instrument self-diagnosis.

The main purpose of the axle weigh scale:

       Axle weigh scale can be widely used in weighing of low-value materials in communication , construction , energy , environmental protection and other industries.

  The axle weight scale has characteristics of weigh quickly and accurately,easy to operate , simple to install and maintain.

  It adopt short table to measure the axle weight of the vehicle to obtain the weight of each axle and whole vehicle weight , no need to stop for measuring , Small size , simple foundation construction , less investment , easy to move , especially suitable for weighing material of low value(such as: stone , yellow sand , ore).





 Specification parameter:

  ◆Weighing speed ≤10km/h

  ◆Max axle load 30t

  ◆Min detection axle load:500kg

  ◆Max axle number: unlimited

  ◆Usage temperature:-30℃~+70℃

  ◆Output sensitivity:1.1±0.2mV/V

  ◆Output impedance:2800Ω

  ◆Safety overload:120%

  ◆Ultimate overload:150%

  ◆Static weighing accuracy:0.1%

  ◆Dynamic weighing accuracy:1~6%


Working process and principle:

  Installation of a fixed dynamic electronic axle weighing scale on the road section(or entrance) that need to be detected.

  When the vehicle is passed, the vehicle type is automatically judged by the tire recognizer, Automatically determine whether the vehicle has passed by the vehicle tail recognizer , the two signals and weighing signal of weighing body are transmitted to the indicator together .

  Weighing indicator performs dynamic date processing on collected signals , display weight of the vehicle and determine whether it is overload . Meanwhile the date is displayed on the screen , which is convenient for driver to check .
