Tonnage/Size/specification

Solid and Durable  Long service life

We take not only an order but also a trust

Product  feature：

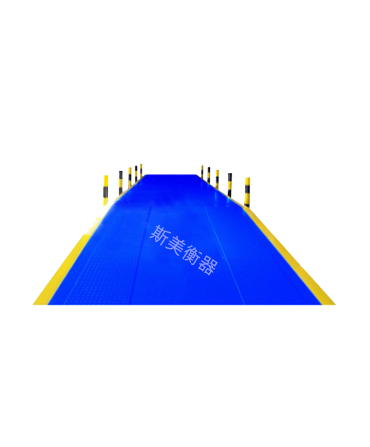

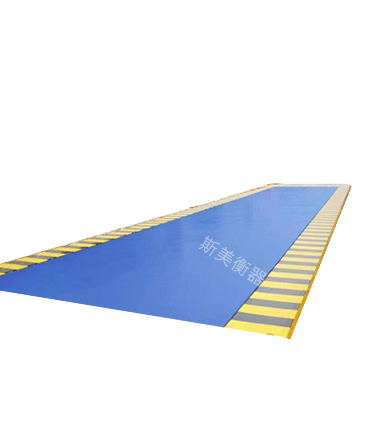

      SCS-D type all-steel table electronic truck scale is a new generation truck scale of company ,it apply U-type (the fifth generation) structure , massive structure is good , strong steel , good manufacturability , not easy to deform , weighing platform design is modular , standardized , serialized . It can be combined into multiple specifications . The inner cavity of weighing table is completely sealed ,not easy to rust .After shot blasting ,epoxy zinc rich primer and acrylic marine paint are used , and the oil film is thick and solid ,.the thickness is 100mm , and wear resistance , pressure resistance , acid resistance , alkali resistance ,strong anti-corrosion ability . The truck scale uses high precision stainless steel sensor and intelligent weighing display instrument . Excellent measurement performance , high accuracy , good long-term job stability ,easy installation and maintenance.

Product function：

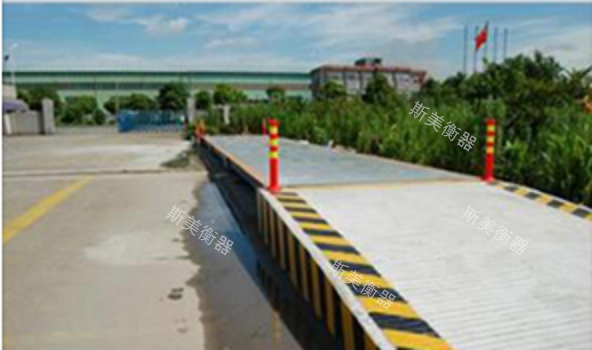

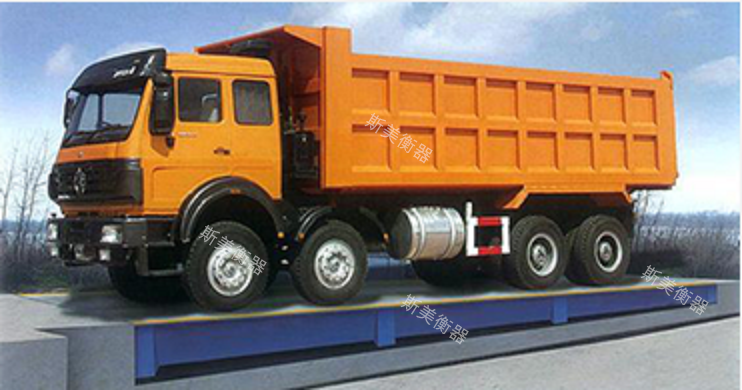

        It’s used in import and export material ,inventory measurement ,production monitoring and date management in ports , factories , warehouse terminal ,workplace and warehouse . suitable for weighting calculation of various trucks,trailers,semitrailers , containers and other vehicles.

Product function :indicator has the functions of automatic zero setting , storage of vehicle tare , overload alarm etc.. External printer , it can print date , vehicle number, cargo number , gross weight , net weight ,etc. According to weighting result can be cumulative, and print the cumulative report.

Specification parameter：

width：3m、3.2m、3.4m

Length：6m、7m、8m、9m、10m、12m、14m、16m、18m、20m、21m、24m

Scope：1t～200t

Precision：Oimliii ，Trends  0.5-0.2%。

Resolution：1000000。

Switching speed ：A/D 500 times /s。

Environment temperature ：load cell -20-+40℃

Weighting indicator ：0-+40℃

Ambient humidity：<90%RH，But there should be no dew

Supply voltage ：AC 220V+10%，50Hz。

DC 12V，500mA。

Rated power：<20W。

16 bit dot matrix liquid crystal display

Cable length ：30m signal cable
